Model Number: WDB74711
Don’t settle for a single-purpose shower. Get a thermostatic shower with three outlets to boost the overall functionality of your shower. Invest in the Cubix Polished Chrome Concealed Triple Thermostatic Shower Valve with Diverter and 200mm Square Head with 300mm Ceiling Arm and Outlet Holder with Kit and Free-Flow Bath Filler - 3 Outlet.
This set provides you with a ceiling-mounted modern shower, hand-held square shower kit, and a free-flow bath filler with push waste and overflow.
The square shower head can be mounted to the ceiling arm, allowing it to directly overhang your bath. The flat design ensures that the shower water is evenly distributed, while the thermostatic shower valve guarantees consistent water temperature.
The set features a polished chrome finish and is made from stainless steel and brass. Not only do these characteristics create a premium look, but they also ensure durability.
Order today and use our 0% finance option!
Key features
Valve
- Thermostatically controlled
- Made from rust resistant brass
- Minimum 0.5 bar pressure
- Stylish chrome finish
- Needs 90mm - 100mm behind wall for fittings
- Fittings included
Shower Head
- Made from durable stainless steel
- Lightweight for easy installation
- Strong pressure resistance
- Modern thin square design
- High resistance to calcium build up
- Fixed Head and Ceiling Arm
- Comes complete with swivel to allow shower head adjustment
- Fittings not included
Outlet Holder with Kit
- Made from rust resistant brass
- Lightweight for easy installation
- Strong pressure resistance
- Striking polished chrome finish
- Modern square design handset
- Shower hose and wall outlet
- Modern square design
- Polished chrome finish
- Crafted from rust resistant brass

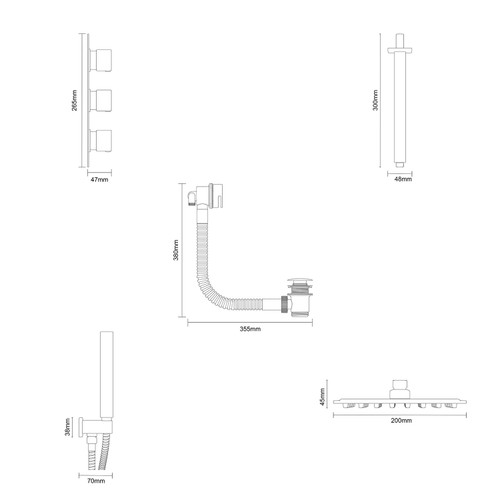

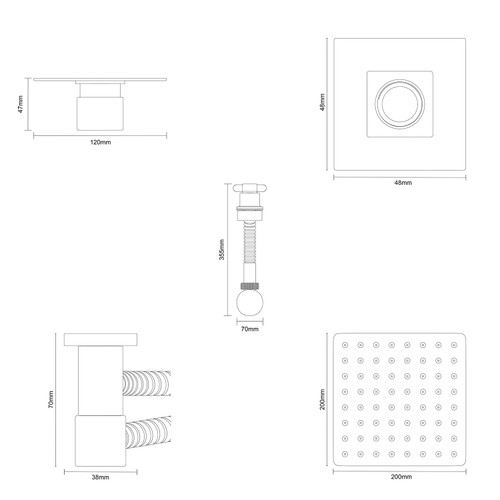

Comprising of:
- Polished Chrome Square Shower Outlet Holder and Kit
W:29.5mm x D:62.3mm x H:227.5mm - Polished Chrome Square Vertical Shower Arm
W:48mm x D:48mm x H:300mm - Polished Chrome Square Free Flow Bath Filler with Push Waste and Overflow
W:70mm x D:0 x H:63.5mm - Polished Chrome Thin Square Fixed Shower Head
W:200mm x D:47mm x H:7mm - Polished Chrome Concealed Triple Thermostatic Shower Valve with Diverter - 3 Outlets
W:120mm x D:140mm x H:265mm
| width | 200mm |
| height | 863mm |
| depth | 140mm |
| fittings supplied | Yes |
| item colour | Chrome |
| item depth | 140mm |
| item finish | Polished |
| item guarantee | 2 Years |
| item material | Metal |
| item mounting method | Sealant and Plumbing |
| item mounting type | Wall, Ceiling & Item Mounted |
| item range | Cubix |
| item shape | Square |
| item style | Modern |
| item weight | 5.89kg |
| maximum flow rate litres | 25.5 |
| maximum pressure | 5 Bar |
| minimum flow rates litres | 7.8 |
| minimum pressure | 0.5 Bar |
| outlet position | Side |
| packaged item height | 820mm |
| packaged item weight | 6.65kg |
| packaged item width | 260mm |
| recommended water pressure | 3 Bar |
| shower arm orientation | Vertical |
| shower head shape | Square |
| shower head size | 200mm |
| shower pipe centres | 80mm |
| shower type | Mixer Shower |
| shower valve exposure | Concealed |
| shower valve lever shape | Square |
| shower valve number of dials | 3 Dials |
| shower valve outlet number | 3 Outlets |
| shower valve type | Triple |
