Model Number: WDB74709
If you're installing a new shower, why not modernise your system with the Cubix Polished Chrome Concealed Triple Thermostatic Shower Valve with Diverter and 400mm Square Head with 300mm Ceiling Arm and Outlet Holder with Kit and Free-Flow Bath Filler - 3 Outlet.
Thermostatic shower valves are perfect for modern family bathrooms since they offer reliable temperatures – there’s no chance of being unexpectedly scalded in the shower.
Not only that, but a triple shower valve with a triple diverter also allows you to install three water outlet options: an overhead shower, a shower handset, and a bath filler tap. Why not bring your bathroom into the modern age?
The Cubix triple thermostatic shower valve comes with everything you need to install and enjoy a contemporary shower, but you need to make sure you have a minimum 0.5 bar pressure for optimal results – any lower and you run into pressure issues. Order today and use our 0% finance option.
Key features
Valve
- Thermostatically controlled
- Made from rust resistant brass
- Minimum 0.5 bar pressure
- Stylish chrome finish
- Needs 90mm - 100mm behind wall for fittings
- Fittings included
Shower Head
- Made from durable stainless steel
- Lightweight for easy installation
- Strong pressure resistance
- Modern thin square design
- High resistance to calcium build up
- Fixed Head and Ceiling Arm
- Comes complete with swivel to allow shower head adjustment
- Fittings not included
Outlet Holder with Kit
- Made from rust resistant brass
- Lightweight for easy installation
- Strong pressure resistance
- Striking polished chrome finish
- Modern square design handset
- Shower hose and wall outlet
- Modern square design
- Polished chrome finish
- Crafted from rust resistant brass

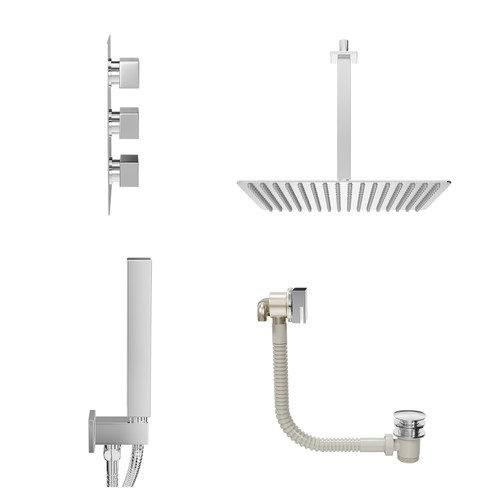

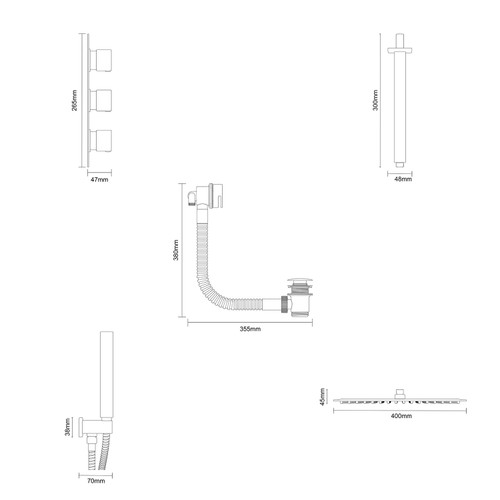

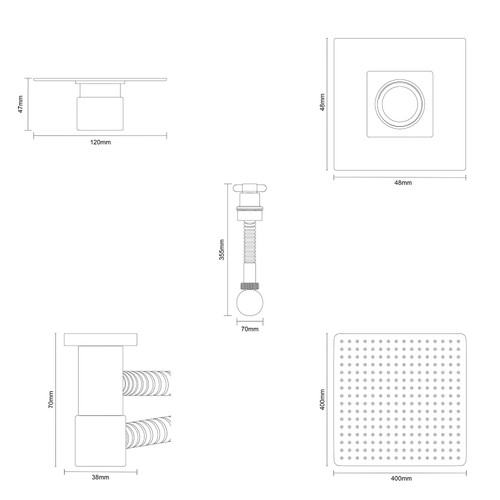

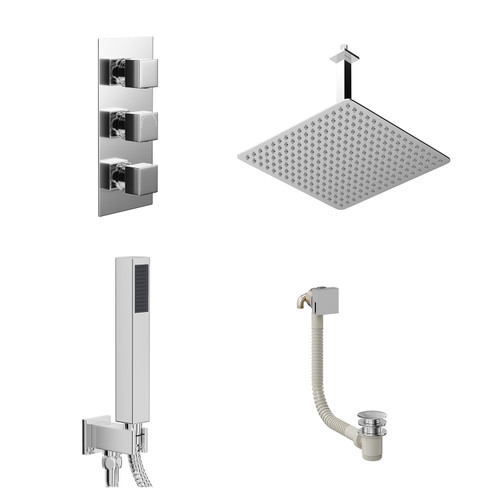

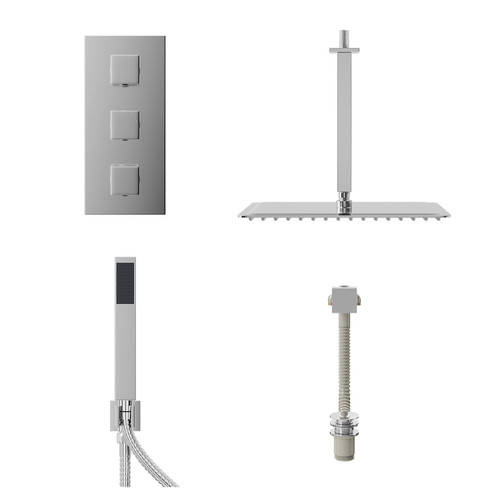

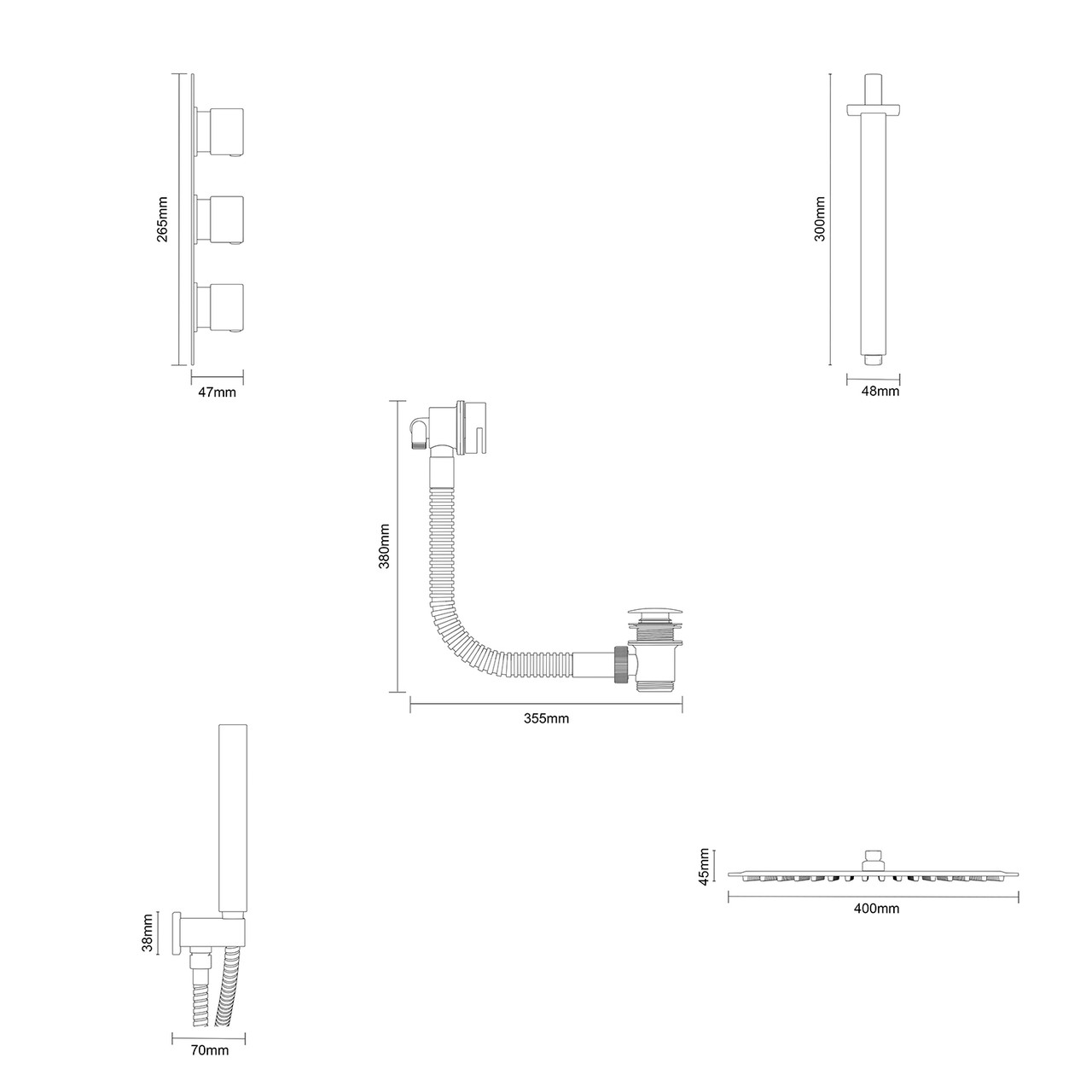

Comprising of:
- Polished Chrome Square Free Flow Bath Filler with Push Waste and Overflow
W:70mm x D:0 x H:63.5mm - Polished Chrome Concealed Triple Thermostatic Shower Valve with Diverter - 3 Outlets
W:120mm x D:140mm x H:265mm - Polished Chrome Square Shower Outlet Holder and Kit
W:29.5mm x D:62.3mm x H:227.5mm - Polished Chrome Thin Square Fixed Shower Head
W:400mm x D:54.5mm x H:7.5mm - Polished Chrome Square Vertical Shower Arm
W:48mm x D:48mm x H:300mm
| width | 400mm |
| height | 863mm |
| depth | 140mm |
| fittings supplied | Yes |
| item colour | Chrome |
| item depth | 140mm |
| item finish | Polished |
| item guarantee | 2 Years |
| item material | Metal |
| item mounting method | Sealant and Plumbing |
| item mounting type | Wall, Ceiling & Item Mounted |
| item range | Cubix |
| item shape | Square |
| item style | Modern |
| item weight | 5.89kg |
| maximum flow rate litres | 25.5 |
| maximum pressure | 5 Bar |
| minimum flow rates litres | 7.8 |
| minimum pressure | 0.5 Bar |
| outlet position | Side |
| packaged item height | 820mm |
| packaged item weight | 6.65kg |
| packaged item width | 260mm |
| recommended water pressure | 3 Bar |
| shower arm orientation | Vertical |
| shower head shape | Square |
| shower head size | 400mm |
| shower pipe centres | 80mm |
| shower type | Mixer Shower |
| shower valve exposure | Concealed |
| shower valve lever shape | Square |
| shower valve number of dials | 3 Dials |
| shower valve outlet number | 3 Outlets |
| shower valve type | Triple |
