Cubix Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter and 400mm Square Head with 150mm Ceiling Arm and 4 Body Jets - 2 Outlet Right Hand View
Cubix Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter and 400mm Square Head with 150mm Ceiling Arm and 4 Body Jets - 2 Outlet Front View

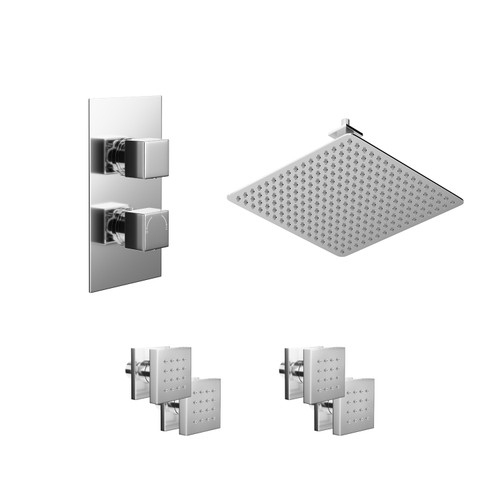

Cubix Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter and 400mm Square Head with 150mm Ceiling Arm and 4 Body Jets - 2 Outlet Left Hand View

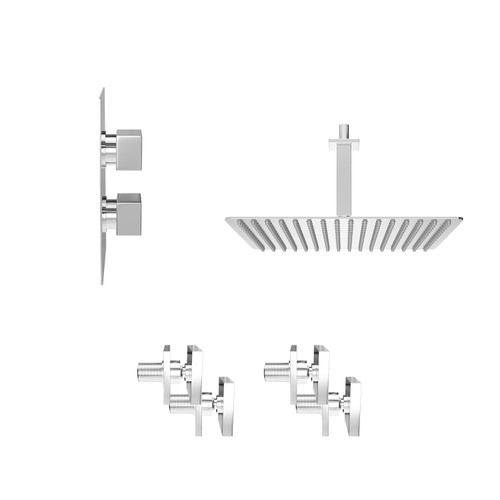

Cubix Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter and 400mm Square Head with 150mm Ceiling Arm and 4 Body Jets - 2 Outlet View from Side

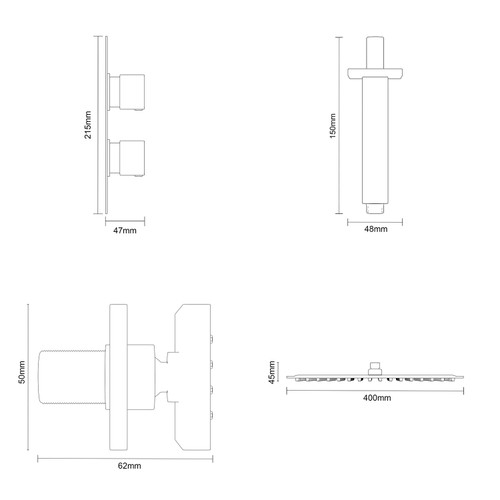

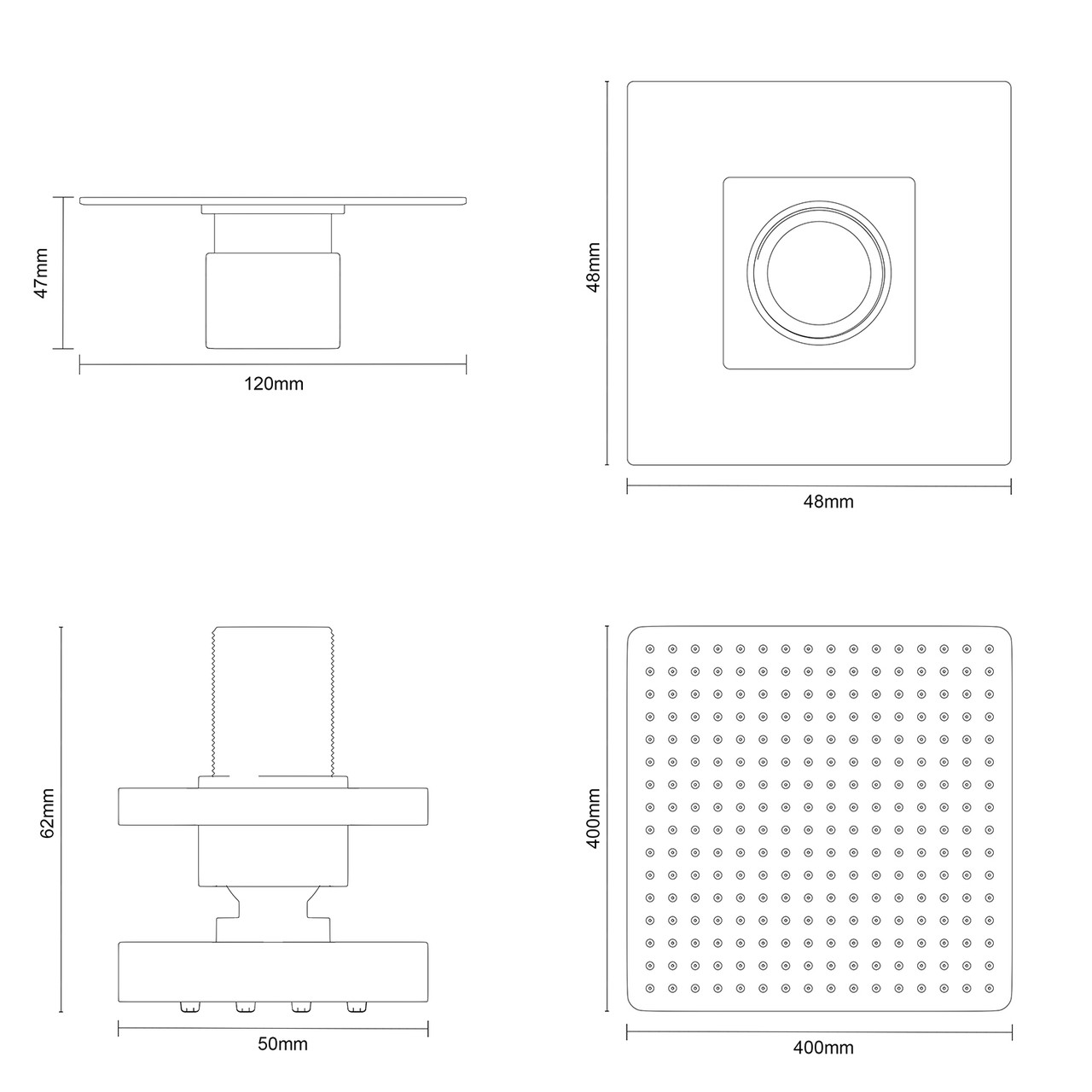

Dimensions
Dimensions

Cubix Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter and 400mm Square Head with 150mm Ceiling Arm and 4 Body Jets - 2 Outlet

£371.70
In Stock
Adding to cart… The item has been added

Click & Collect

Need help? Call us at 0344 809 4249

View Buying Guides

Model Number: WDB74730

Don’t settle for a basic shower with limited functions. Instead, invest in a thermostatic shower valve with multiple features, such as the Cubix Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter and 400mm Square Head with 150mm Ceiling Arm and 4 Body Jets - 2 Outlet.

The centrepiece of this set is the twin shower valve, which is concealed to create a refined and modern look. With this, you’re guaranteed to get the right temperature and water pressure every time you shower.

With it, you can control the water that comes out of the overhead shower as well as the body jets. The overhead shower is square, which gives it a distinctly contemporary appearance. The body jets, on the other hand, modernise your shower functions and add a spa-like quality to your daily showers.

The shower and accessories in this set are made using brass and stainless steel, which guarantees the durability of the product. Order today!

Key features

Valve

  • Thermostatically controlled
  • Made from rust resistant brass
  • Minimum 0.5 bar pressure
  • Stylish chrome finish
  • Needs 90mm - 100mm behind wall for fittings
  • Fittings not included

Shower Head

  • Made from durable stainless steel
  • Lightweight for easy installation
  • Strong pressure resistance
  • Modern thin square design
  • High resistance to calcium build up
  • Fixed Head and Wall Arm
  • Comes complete with swivel to allow shower head adjustment
  • Fittings included

Slide Rail Kit

  • Made from long lasting stainless steel
  • Lightweight for easy installation
  • Strong pressure resistance
  • Striking polished chrome finish
  • Modern square design handset
  • Height adjustable slider rail
  • Shower hose and wall outlet
Shower Elbow

  • Modern square design
  • Polished chrome finish
  • Crafted from rust resistant brass

Comprising of:

  • Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter - 2 Outlets
    W:120mm x D:140mm x H:215mm
  • Polished Chrome Square Vertical Shower Arm
    W:48mm x D:48mm x H:150mm
  • Polished Chrome Square Body Shower Jet
    W:50mm x D:62mm x H:50mm
  • Polished Chrome Thin Square Fixed Shower Head
    W:400mm x D:54.5mm x H:7.5mm
width 400mm
height 422mm
depth 140mm
body jets Yes
fittings supplied Yes
item colour Chrome
item depth 140mm
item finish Polished
item guarantee 3 Years
item material Metal
item mounting method Sealant and Plumbing
item mounting type Wall & Ceiling
item range Cubix
item shape Square
item style Modern
item weight 3.99kg
maximum flow rate litres 25.5
maximum pressure 5 Bar
minimum flow rates litres 7.8
minimum pressure 0.5 Bar
outlet position Side
packaged item height 525mm
packaged item weight 4.33kg
packaged item width 160mm
recommended water pressure 3 Bar
shower arm orientation Vertical
shower head shape Square
shower head size 400mm
shower pipe centres 80mm
shower type Mixer Shower
shower valve exposure Concealed
shower valve lever shape Square
shower valve number of dials 2 Dials
shower valve outlet number 2 Outlets
shower valve type Twin
