Model Number: WDB74886

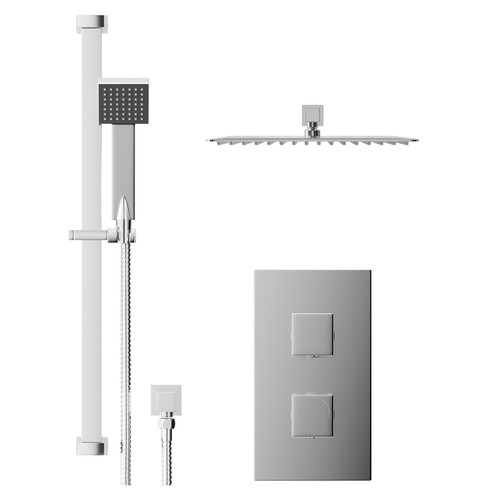

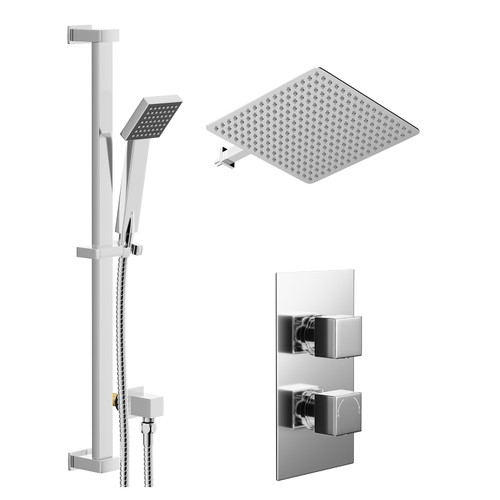

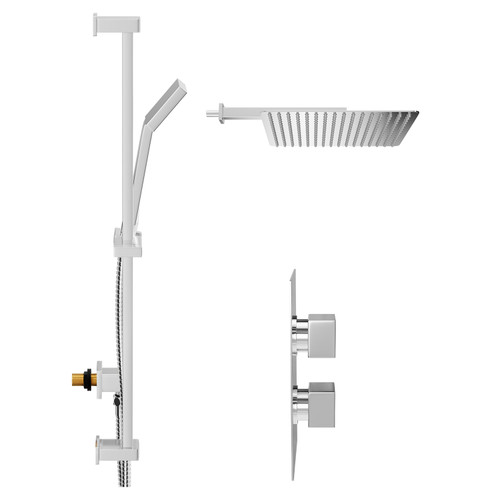

Level up your shower set-up with the Cubix Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter and 400mm Square Head with 345mm Wall Arm and Thames Slide Rail Kit - 2 Outlet.
This shower set consists of both an overhead shower as well as a handheld shower. These parts can be controlled by the thermostatic shower valve, which helps you achieve the perfect shower temperature and water pressure each and every time you shower. The set also includes a diverter, which makes switching between shower functions seamless.
The components that make up this set are constructed from brass and stainless steel. This hardwearing build guarantees durability, which is why this thermostatic shower and rail kit comes with a 3-year guarantee. The parts also feature either a chrome or polished finish, which helps boost your shower area's aesthetic appeal.
Order now and use our 0% finance option!
Key features
Valve
- Thermostatically controlled
- Made from rust resistant brass
- Minimum 0.5 bar pressure
- Stylish chrome finish
- Needs 90mm - 100mm behind wall for fittings
- Fittings not included
Shower Head
- Made from durable stainless steel
- Lightweight for easy installation
- Strong pressure resistance
- Modern thin square design
- High resistance to calcium build up
- Fixed Head and Wall Arm
- Comes complete with swivel to allow shower head adjustment
- Fittings included
Slide Rail Kit
- Made from long lasting stainless steel
- Lightweight for easy installation
- Strong pressure resistance
- Striking polished chrome finish
- Modern square design handset
- Height adjustable slider rail
- Shower hose and wall outlet
- Modern square design
- Polished chrome finish
- Crafted from rust resistant brass

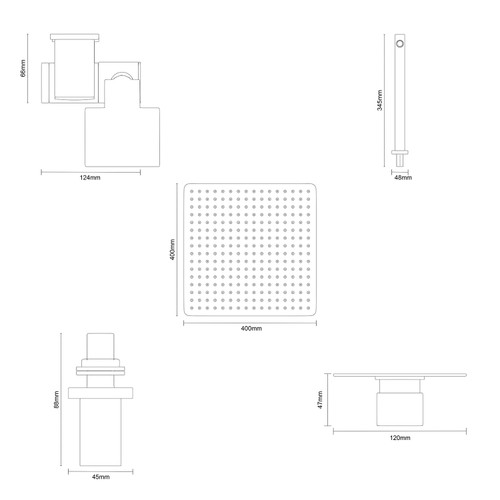

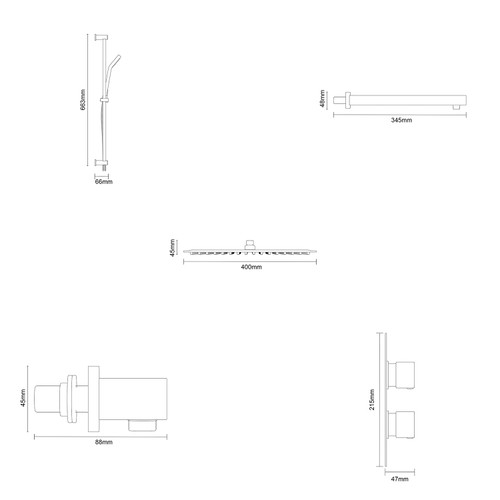

Comprising of:
- Polished Chrome Square Shower Arm
W:48mm x D:48mm x H:354mm - Polished Chrome Shower Slide Rail Kit
W:22mm x D:72mm x H:670mm - Polished Chrome Concealed Twin Thermostatic Shower Valve with Diverter - 2 Outlets
W:120mm x D:140mm x H:215mm - Polished Chrome Thin Square Fixed Shower Head
W:400mm x D:54.5mm x H:7.5mm - Polished Chrome Square Shower Elbow
W:48mm x D:95mm x H:48mm
| width | 400mm |
| height | 670mm |
| depth | 140mm |
| fittings supplied | Yes |
| item colour | Chrome |
| item depth | 140mm |
| item finish | Polished |
| item guarantee | 3 Years |
| item material | Metal |
| item mounting method | Sealant and Plumbing |
| item mounting type | Wall |
| item range | Cubix |
| item shape | Square |
| item style | Modern |
| item weight | 5.19kg |
| maximum flow rate litres | 25.5 |
| maximum pressure | 5 Bar |
| minimum flow rates litres | 7.8 |
| minimum pressure | 0.5 Bar |
| outlet position | Side |
| packaged item height | 220mm |
| packaged item weight | 5.67kg |
| packaged item width | 160mm |
| recommended water pressure | 3 Bar |
| riser rail type | Adjustable |
| shower arm orientation | Horizontal |
| shower connection inlet | G 1/2" |
| shower handset | Yes |
| shower head modes | 1 |
| shower head shape | Square |
| shower head size | 400mm |
| shower hose length | 1.5mm |
| shower pipe centres | 80mm |
| shower type | Mixer Shower |
| shower valve exposure | Concealed |
| shower valve lever shape | Square |
| shower valve number of dials | 2 Dials |
| shower valve outlet number | 2 Outlets |
| shower valve type | Twin |
| wall outlet elbow | Yes |
