Model Number: WDB75735

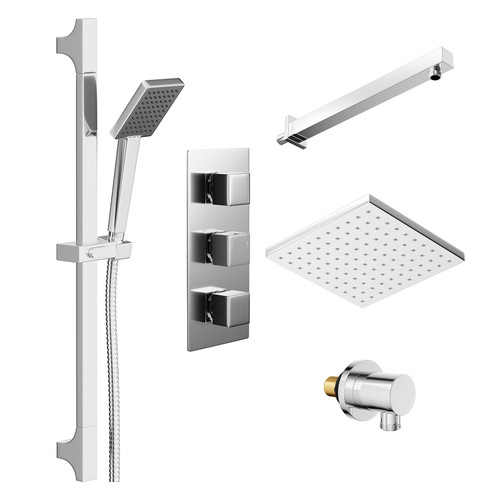

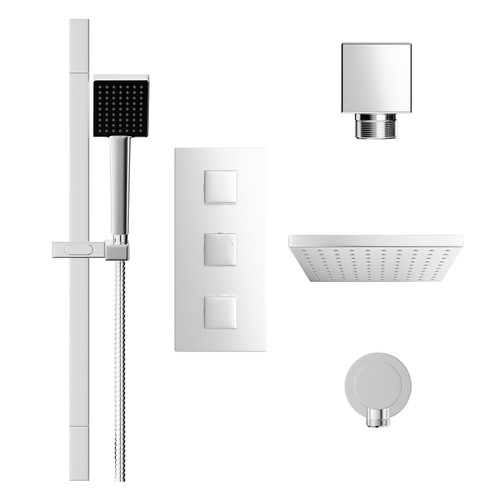

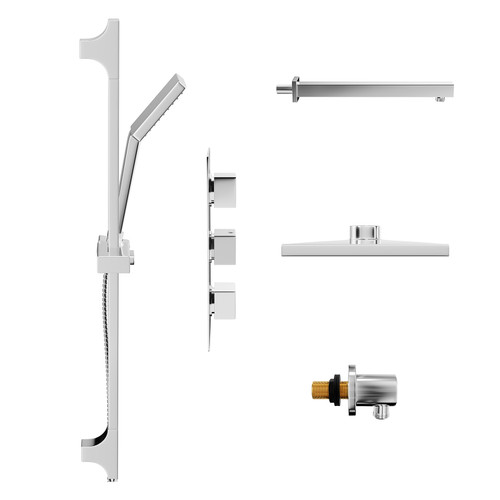

Upgrade and elevate your showering experience with the luxurious Cubix Polished Chrome Triple Thermostatic Shower Valve and 200mm Square Fixed Head with Wall Arm and Severn Shower Slide Rail Kit with Round Elbow. This comprehensive shower set has everything you need to enjoy a relaxing and rejuvenating shower, including a concealed twin thermostatic shower valve that controls two outlets, a square fixed shower head, wall-mounting arm, and a shower slide rail kit designed to be used with a shower handset of your choice (available separately). Adding a handset to your shower setup can be particularly beneficial if you want to save time drying your hair during the morning rush and only need to wash your body.
The polymer-based cartridge used in the thermostatic valves is highly resistant to limescale deposits and effectively manages plumbing debris. The concealed valves feature sleek corners with a soft round finish and have been carefully crafted to mount flush against your wall.
Key features
- Thermostatically controlled
- Built in Anti Scald Device
- Made from high grade engineering polymer
- Suitable for all plumbing systems
- Stylish chrome finish

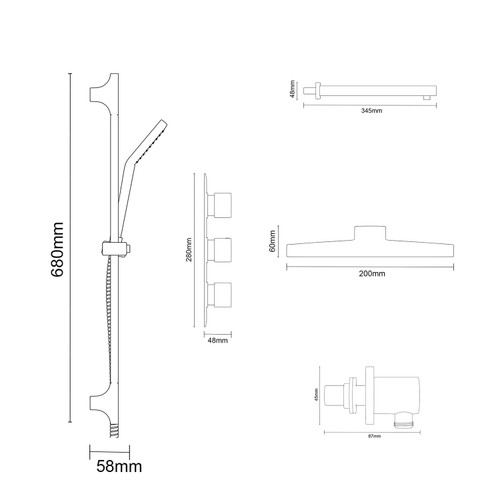

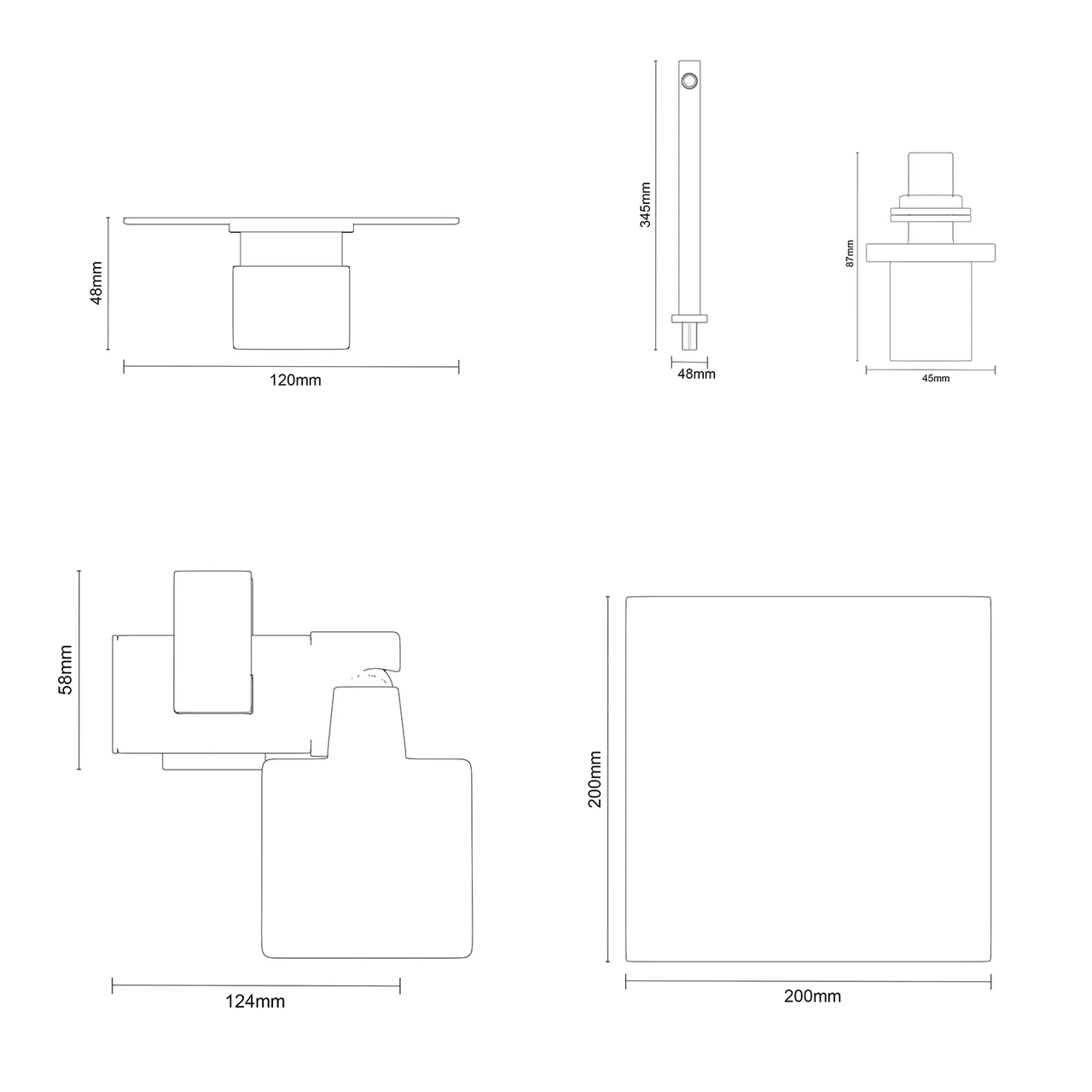

Comprising of:
- Cubix Polished Chrome Concealed Triple Thermostatic Shower Valve
W:120mm x D:140mm x H:265mm - Severn Polished Chrome Shower Slide Rail Kit
W:30mm x D:60.5mm x H:680mm - Cubix Polished Chrome 200mm Square Fixed Shower Head
W:200mm x D:45mm x H:10.2mm - Cubix Polished Chrome 345mm Square Shower Arm
W:48mm x D:48mm x H:354mm - Deluxe Polished Chrome Round Shower Elbow
W:45mm x D:89mm x H:45mm
| width | 200mm |
| height | 680mm |
| depth | 140mm |
| fittings supplied | Yes |
| item colour | Chrome |
| item guarantee | 3 Years |
| item material | Metal |
| item mounting method | Sealant and Plumbing |
| item mounting type | Wall |
| item range | Cubix |
| item depth | 140mm |
| item shape | Square |
| item finish | Polished |
| maximum flow rate litres | 26.8L |
| item style | Modern |
| item weight | 6.04kg |
| minimum flow rates litres | 8.5L |
| maximum pressure | 5 Bar |
| outlet position | Centre |
| minimum pressure | 0.5 Bar |
| packaged item height | 220mm |
| recommended water pressure | 3 Bar |
| riser rail type | Adjustable |
| packaged item width | 160mm |
| shower connection inlet | G 1/2" |
| packaged item weight | 6.32kg |
| shower handset | Yes |
| shower head modes | 1 |
| shower head shape | Square |
| shower hose length | 1.5m |
| shower pipe centres | 80mm |
| shower valve lever shape | Square |
| shower type | Mixer Shower |
| shower head size | 83mm |
| shower valve exposure | Concealed |
| shower valve type | Concealed |
| shower valve outlet number | 2 Outlets |
| shower valve number of dials | 3 Dials |
