Jesi Mechanical Low Height Concealed Cistern with Wall Frame and Chrome Dual Flush Plate with Square Buttons View from Front

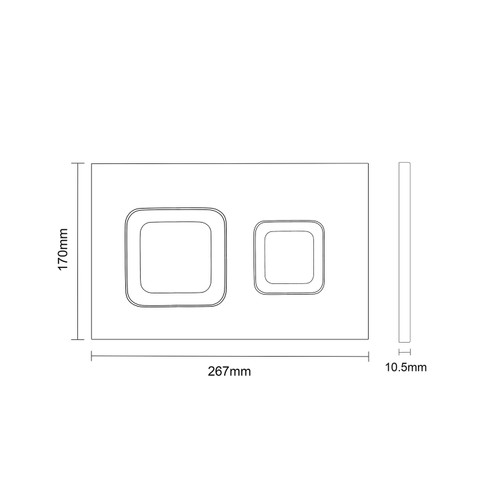

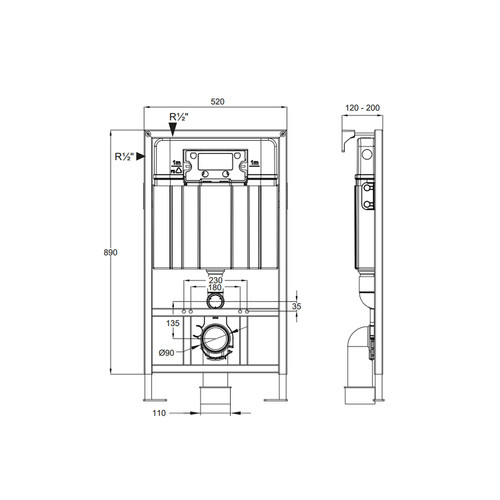

Dimensions
Dimensions

Jesi Mechanical Low Height Concealed Cistern with Wall Frame and Chrome Dual Flush Plate with Square Buttons

£154.95
In Stock
Adding to cart… The item has been added

Click & Collect

Need help? Call us at 0344 809 4249

View Buying Guides

Model Number: WDB73395

Upgrade your bathroom with the sleek and efficient Jesi Mechanical Low Height Concealed Cistern. This innovative design features a concealed cistern tucked neatly behind the wall, creating a modern, minimalist aesthetic. The low-height configuration is perfect for smaller bathrooms or unique architectural designs, maximising space without compromising functionality.

This system includes a robust wall frame for secure installation and a stylish chrome dual flush plate with square buttons. The dual flush mechanism allows you to choose between a full or half flush, conserving water and reducing your environmental impact. The mechanical operation ensures reliable performance and easy maintenance. The Jesi concealed cistern provides a quiet and efficient flushing experience, adding a touch of elegance to your bathroom renovation.

Key Features:

  • Concealed cistern for a modern, minimalist look
  • Low height design ideal for smaller bathrooms
  • Includes sturdy wall frame for secure installation
  • Chrome dual flush plate with square buttons for a stylish finish
  • Water-saving dual flush mechanism (full/half flush)
  • Reliable mechanical operation
  • Quiet and efficient flushing
width 450mm
height 1000mm
depth 120mm
cistern capacity Adjustable 1.5/3 Litres - 2.5/6 Litres
cistern feed entry location Top
cistern flow rate 2.2 Litres per Second
cistern type Concealed
dual flush Yes
flush plate material ABS
flush type Push Button
flush volume 3/6 Litres
frame installation depth 116mm Min
frame load capacity 400kg
item colour Chrome
item depth 120mm
item finish Chrome
item guarantee 2 Years
item material Metal & Plastic
item mounting method Brackets and Plumbing
item mounting type Wall
item range Jesi
item shape Square
item style Modern
item weight 10.96kg
packaged item height 1045mm
packaged item weight 11.92kg
packaged item width 535mm
toilet type compatibility Wall Hung
