Nuie Windon Brushed Brass Triple Concealed Thermostatic Shower Valve with Diverter - WIN8TR03 Front View

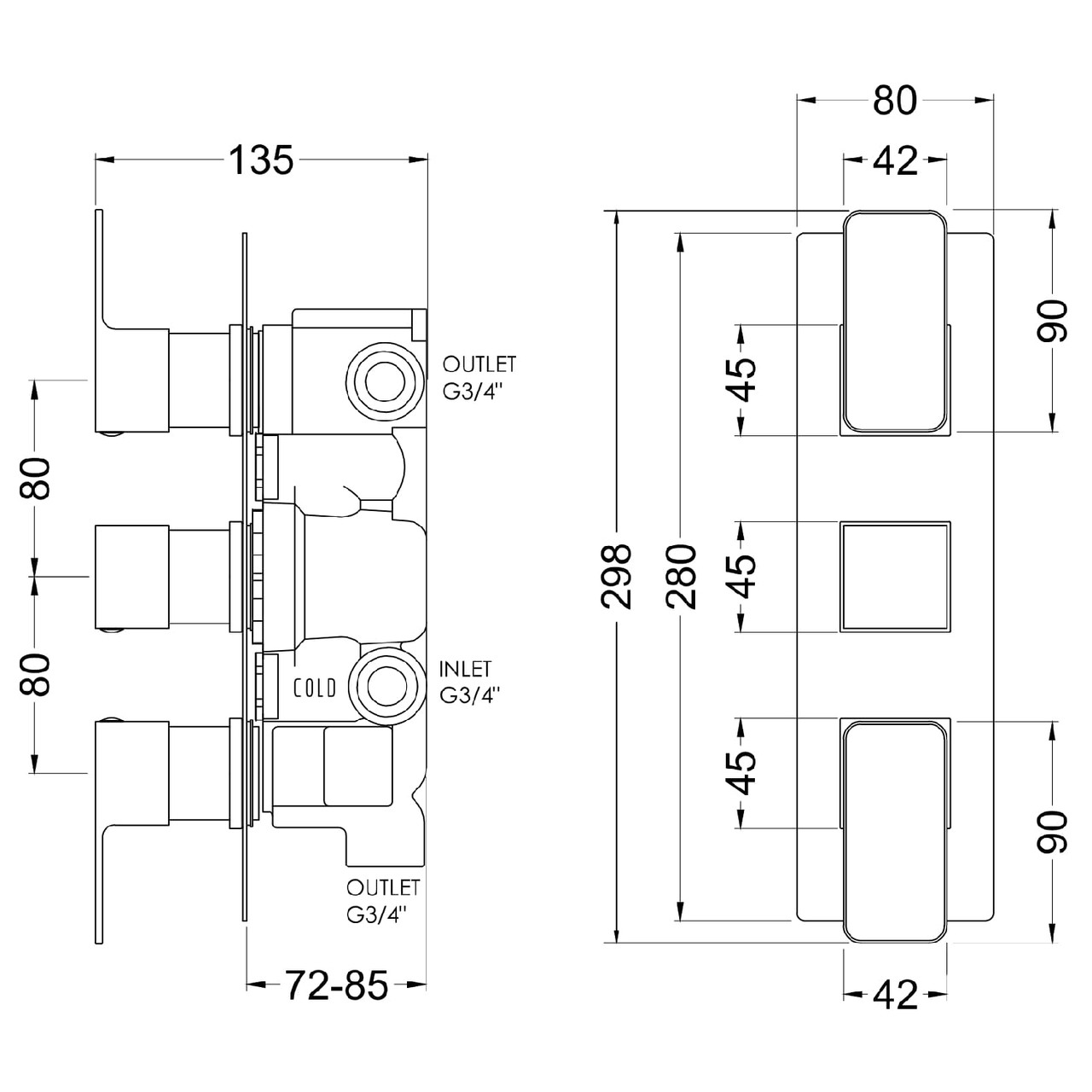

Nuie Windon Brushed Brass Triple Concealed Thermostatic Shower Valve with Diverter - WIN8TR03 Dimensions

Nuie Windon Brushed Brass Triple Concealed Thermostatic Shower Valve with Diverter - WIN8TR03

£361.95
In Stock Online
Adding to cart… The item has been added

Click & Collect

Need help? Call us at 0344 809 4249

View Buying Guides

Key features

  • Minimalist sleek design with brushed brass finish
  • Can be fitted vertically or horizontally
  • Accurate flow control
  • Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180° and replace
  • Manufactured from solid brass
  • Resistant to corrosion
  • Operating pressure is 0.1 bar

Product Notes:

During installation extra care must be taken to avoid damaging the fittings. The Manufacturer provides a 3 Year Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.

Complete your purchase with a tap, shower head, handset, outlet elbow, and body jets of your choice.

width 80mm
height 298mm
depth 135mm
item depth 135mm
item finish Satin
item colour Brushed Brass
item range Windon
item guarantee 3 Year
item material Metal
item mounting type Wall
item shape Square
item weight 3.5kg
item style Modern
maximum pressure 5 Bar
maximum flow rate litres 27
minimum flow rates litres 13
minimum pressure 0.1 Bar
number of valve dials 3 Dials
outlet position Top and Bottom
packaged item weight 3.5kg
packaged item width 250mm
shower valve exposure Concealed
recommended water pressure 0.5 Bar
shower valve lever shape Lever
packaged item height 110mm
shower valve type Triple Valve
shower valve outlet number 3 Outlets
item mounting method Sealant and Plumbing
shower valve number of dials 3 Dials
